ENH202
Wireless-N Long Range Outdoor AP/CB

Installation guide

This guide will help you use Engenius zone controller to monitor your device for the first time.

1. Install EnGenius Zone Controller

2. Launch the software

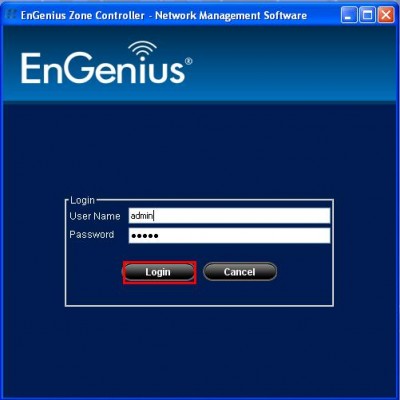

3. Click Login

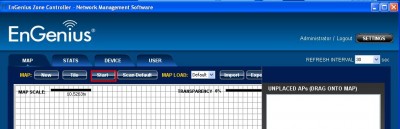

4. Click Start

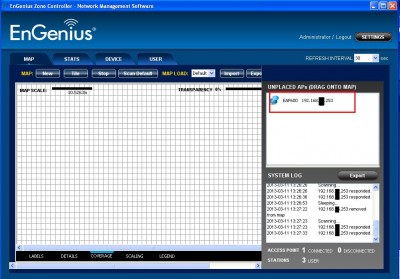

5. Check if your device is in Unplaced APs

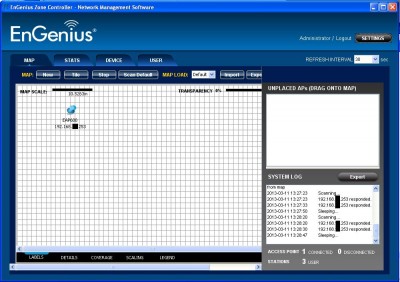

6. Drag the AP to the map

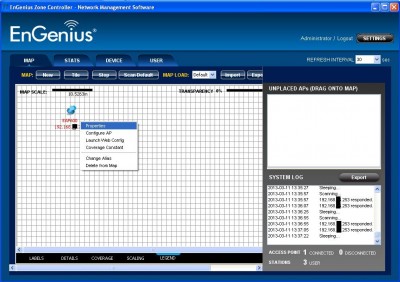

7. Right click at the device to see details/configure it/launch Web configuration.

8. Click Coverage to see the range that the AP covers

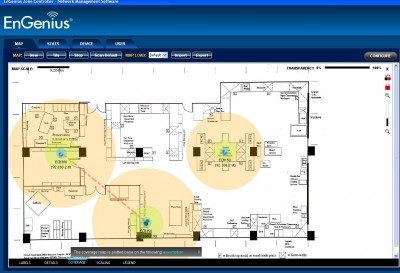

An example screenshot

The EAP300 is an AP, and the EAP150 connected to the EAP300 is configured as a repeater.
